Solenoid Magnetic Field & Induced EMF Simple Numericals - Compiled By Bilal Ahmad Khan AKA Mr. BILRED

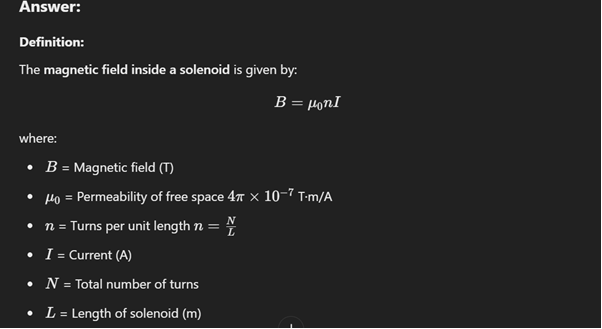

What is a Solenoid?

A solenoid is a coil of wire wound in a cylindrical shape that generates a magnetic field when an electric current passes through it. It acts like an electromagnet and is commonly used in motors, relays, and inductors.

What is Induced EMF?

Electromotive Force (EMF) is the voltage generated when the magnetic flux through a coil changes. According to Faraday’s Law, a changing magnetic field induces an EMF, which is the principle behind transformers and electric generators.

QUESTIONS (Try to solve these at your own first):

1.      A solenoid 1.30 m long and 2.60 cm in diameter carries a current of 18.0 A. The magnetic field inside the solenoid is 23.0 mT.
Find the total length of the wire used to form the solenoid.

2.      A solenoid has 2000 turns uniformly wound over a length of 50 cm. If it carries a current of 5 A, find the magnetic field inside the solenoid

3.      A solenoid is 1.5 m long and has 6000 turns. The magnetic field inside it is measured to be 15 mT. Find the current flowing through the solenoid.

4.      A solenoid with 500 turns per meter carries a current of 3 A. What should be its length if the required magnetic field inside the solenoid is 6 mT?

5.      A solenoid has 1500 turns over a 50 cm length. If the current changes from 2 A to 5 A in 0.02 s, find the induced EMF in the solenoid(Assume the diameter of the solenoid is 2cm)




Question 1:

A solenoid 1.30 m long and 2.60 cm in diameter carries a current of 18.0 A. The magnetic field inside the solenoid is 23.0 mT.
Find the total length of the wire used to form the solenoid.

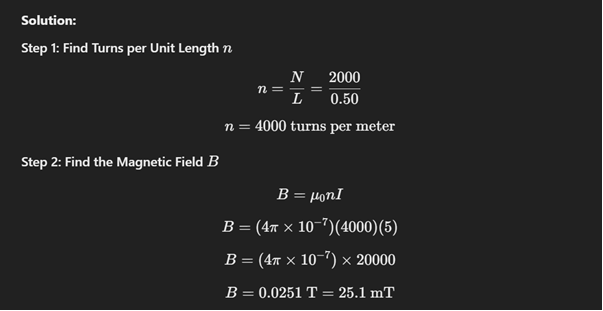

Question 2:

A solenoid has 2000 turns uniformly wound over a length of 50 cm. If it carries a current of 5 A, find the magnetic field inside the solenoid

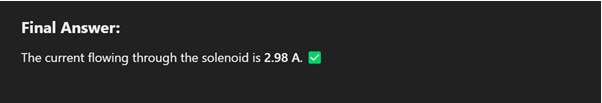

Question 3:

A solenoid is 1.5 m long and has 6000 turns. The magnetic field inside it is measured to be 15 mT. Find the current flowing through the solenoid.







Question 4:

A solenoid with 500 turns per meter carries a current of 3 A. What should be its length if the required magnetic field inside the solenoid is 6 mT?



Question 5:

A solenoid has 1500 turns over a 50 cm length. If the current changes from 2 A to 5 A in 0.02 s, find the induced EMF in the solenoid(Assume the diameter of the solenoid is 2cm)

Uploading: 29244 of 29244 bytes uploaded.



Disclaimer:

Help provided as a courtesy. Outcomes and decisions are yours to own.

AI has been used in creating this content, If Any Errors Found, Please Contact Bilal Ahmad Khan AKA Mr. BILRED ASAP


Github:
I have uploaded some notes on my Github Profile, feel free to visit there.

My Github: https://github.com/BilalAhmadKhanKhattak

AppliedPhysicsNotesByBilred

CalculusNotesByBilred

CppNotes


What I Think:

"Knowledge Should Be Shared
Only With The One
Who Knows Its True Worth!
Not Everyone Deserves It"
- Bilal Ahmad Khan AKA Mr. BILRED
