Linear Circuit Analysis: Key Formulas for Resistors, Capacitors, and More


Essential Circuit Analysis Formulas

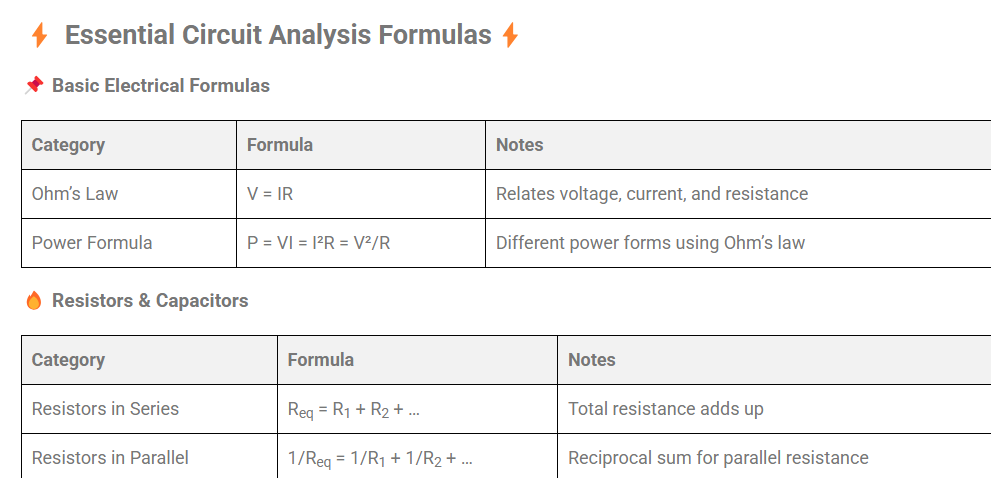

⚡ Essential Circuit Analysis Formulas⚡

📌 Basic Electrical Formulas

CategoryFormulaNotes
Ohm’s LawV = IRRelates voltage, current, and resistance
Power FormulaP = VI = I²R = V²/RDifferent power forms using Ohm’s law

🔥 Resistors & Capacitors

CategoryFormulaNotes
Resistors in SeriesReq = R1 + R2 + …Total resistance adds up
Resistors in Parallel1/Req = 1/R1 + 1/R2 + …Reciprocal sum for parallel resistance
Capacitors in Series1/Ceq = 1/C1 + 1/C2 + …Opposite of resistors
Capacitors in ParallelCeq = C1 + C2 + …Direct sum for parallel capacitors

⚙️ Inductor Formulas

CategoryFormulaNotes
Inductors in SeriesLeq = L1 + L2 + …Same as resistors in series
Inductors in Parallel1/Leq = 1/L1 + 1/L2 + …Same as resistors in parallel
Energy Stored in InductorW = (1/2) L i²Energy stored in a magnetic field
RL Time Constantτ = L/RTime constant for inductor current change

⚡ Voltage & Current Divider Rules

CategoryFormulaNotes
Voltage Divider Rule (VDR)Vx = Vtotal × (Rx / Rtotal)Used when resistors are in series
Current Divider Rule (CDR)Ix = Itotal × (Rother / Rtotal)Used when resistors are in parallel

🌀 Formulas

CategoryFormulaNotes
RC Charging VoltagevC(t) = Vf(1 - e-t/τ)Exponential capacitor charging
RC Discharging VoltagevC(t) = V0 e-t/τExponential capacitor discharging
RL Current ResponseiL(t) = i0 e-t/τInductor current decay

⚡ Step Response Formulas (RC & RL Circuits)

📌 For Capacitors in RC Circuits:

CategoryFormulaNotes
RC Charging Voltage vC(t) = Vf + (V0 - Vf) e-t/τ General capacitor voltage formula
Special Case (Uncharged Capacitor Charging) vC(t) = Vs (1 - e-t/τ) When V0 = 0, capacitor starts from 0V
RC Discharging Voltage vC(t) = V0 e-t/τ When capacitor discharges, Vf = 0
RC Time Constant τ = RC Time for voltage to reach ~63% of Vf

⚡ For Inductors in RL Circuits:

CategoryFormulaNotes
RL Current Response iL(t) = If + (I0 - If) e-t/τ General inductor current response
Special Case (Inductor Starting from 0A) iL(t) = Is (1 - e-t/τ) When I0 = 0, inductor builds current
RL Discharging (Decay of Inductor Current) iL(t) = I0 e-t/τ Inductor current decreases over time
RL Time Constant τ = L/R Time for current to reach ~63% of If

🔗 Thevenin & Norton Equivalents

CategoryFormulaNotes
Thevenin VoltageVth = Vopen-circuitVoltage seen at terminals when load is removed
Norton CurrentIN = Vth / RthCurrent when terminals are shorted

🔎 Circuit Analysis Techniques

TechniqueDescription
Superposition TheoremSolve circuit by considering one source at a time
Nodal AnalysisUses KCL and node voltages to solve circuits
SupernodeUsed when voltage sources connect two nodes
Mesh AnalysisUses KVL and mesh currents to solve circuits
SupermeshUsed when a current source exists between two meshes

🔍 (For Nerds)

T2ggbWFuLCBOSUNFLCB5b3UgdHJpZWQgdG8gZGVjb2RlIG1lISBHcmVhdCB3b3JrIGJ0dy4uLg==

📢 Disclaimer

Help provided as a courtesy. Outcomes and decisions are yours to own.
AI has been used to assist in creating this content. If any errors are found, please contact Bilal Ahmad Khan AKA Mr. BILRED ASAP.
